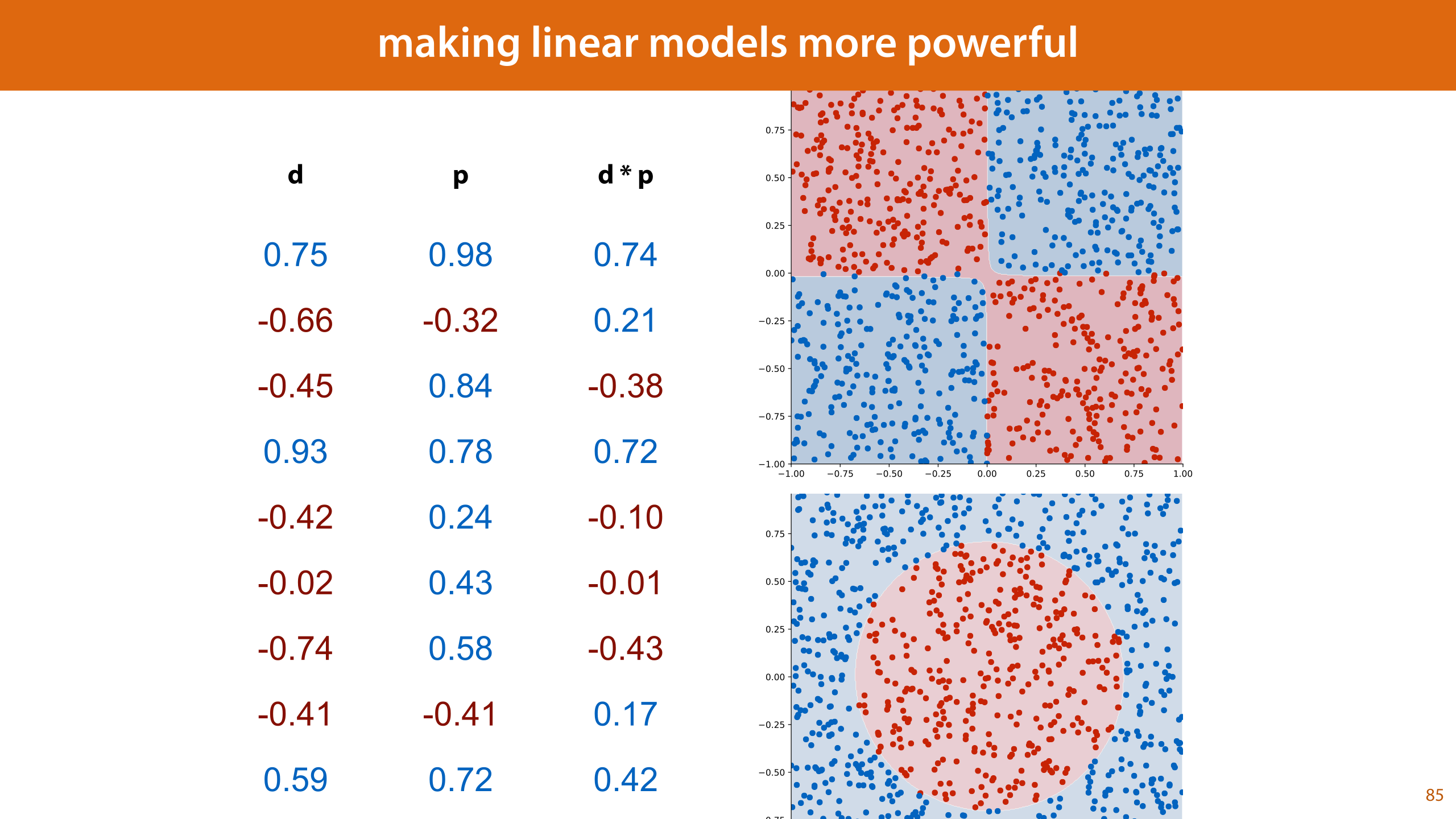

A few lectures ago, we saw how we could make a linear model more powerful, and able to learn nonlinear decision boundaries by just expanding our features: we add new features derived from the old ones, and depending on which combinations we add, we can learn new, non-linear decision boundaries or regression functions.
Both models we will see today, neural networks and support vector machines, take this idea and build on it. Neural networks are a big family, but the simplest type, the two-layer feedforward network, functions as a feature extractor followed by a linear model. In this case, we don’t choose the extended features but we learn them, together with the weights of the linear model.
The support vector machine doesn’t learn the expanded features (we still have to choose them manually), but it uses a kernel function to allow us to fit a linear model in a very high-dimensional feature without having to pay for actually computing all these expanded features.
The layout of today’s lecture will be largely chronological. We will focus on neural networks, which were very popular in the late eighties and early nineties.
Then, towards the end of the nineties, interest in neural networks died down a little and support vector machines became much more popular.
In the next lecture, we’ll focus on Deep Learning, which sees neural networks make a comeback in a big way.
In this video, we’ll start with the basics of neural networks.
In the very early days of AI (the late 1950s), researchers decided to try a simple approach: the brain is the only truly intelligent system we know, so let’s see what it’s made of, and whether that provides some inspiration for intelligent (and learning) computer systems.
They started with a single brain cell: a neuron. A neuron receives multiple different input signals from other cells through connections called dendrites. It processes these in a relatively simple way, deriving a single new signal, which it sends out through its single axon. The axon branches out so that this single output signal can reach different cells.
image source: http://www.sciencealert.com/scientists-build-an-artificial-neuron-that-fully-mimics-a-human-brain-cell
These ideas needed to be radically simplified to work with computers of that age, but the basic idea was still there: multiple inputs, one output. Doing this yielded one of the first successful machine learning systems: the perceptron. This was the model we saw in action in the video in the the first lecture.
The perceptron has a number of inputs, the features in modern parlance, each of which is multiplied by a weight. The result is summed, together with a bias parameter, and the sign of this result is used as the classification.
Of course, we’ve seen this classifier already: it’s just our basic linear classifier. The training algorithm was a little different from gradient descent, but the basic principle was the same.
Note that when we draw the perceptron this way, as a mini network, the bias can be represented as just another input that we fix to always be 1. This is called a bias node.
Of course the brain’s power does not come from the fact that a single neuron is such a powerful mechanism by itself: it’s the composition of many simple parts that allows it to do what it does. We make the output of one neuron the input of another, and build networks of billions of neurons.
And this is where the perceptron turns out to be too simple an abstraction. Because composing perceptrons doesn’t make them more powerful. Consider the graph on the left, with multiple perceptrons composed together.
Writing down the function that this graph represents, we see that we get a simple function, with the first two perceptrons in brackets. If we then multiply out the brackets, we see that the result is a linear function. This means that we can represent this function also as a single perceptron with four inputs. This is always true. No matter how many perceptrons you chain together, the result will never be anything more than a simple linear function over your inputs: a single perceptron.
To create perceptrons that we can chain together in such a way that the result will be more expressive than any single perceptron could be, the simplest trick is to include a non-linearity, also called an activation function.
After all the weighted inputs have been combined, we pass the resulting scalar through a simple non-linear scalar function to produce the output. One popular option, especially in the early days of neural networks, was the logistic sigmoid, which we’ve seen already. Applying a sigmoid means that the sum of the inputs can range from negative infinity to positive infinity, but the output is always in the interval [0, 1].
Another, more recent non-linearity is the linear rectifier, or ReLU nonlinearity. This function just sets every negative input to zero, and keeps everything else the same.
Not using an activation function is also called using a linear activation.
Using these nonlinearities, we can arrange single perceptrons into neural networks. Any arrangement of perceptrons makes a neural network, but for ease of training, this arrangement seen here was the most popular for a long time. It’s called the feedforward network or multilayer perceptron (MLP). We arrange a layer of hidden units in the middle, each of which acts as a perceptron with a nonlinearity, connecting to all input nodes. Then we have one or more output nodes, connecting to all hidden units. Note the following points.
There are no cycles, the network feeds forward from input to output.
Nodes in the same layer are not connected to each other, or to any other layer than the next and the previous one.
Each layer is fully connected to the previous layer, every node in one layer connects to every node in the layer before it.
In the 80s and 90s these networks usually had just one hidden layer, because we hadn’t figured out how to train deeper networks.
Note that every line in this picture represents one distinct parameter of the model. The blue lines (those connected to bias nodes) represent biases, and the rest represent weights.
We can use networks like these to do classification or regression.
This is a simple feedforward neural network in pseudocode (including the computation of the loss). It’s worth studying this in detail to make sure you understand all the steps.
Here are some questions you can ask yourself to see if you properly understand.
Where is k2 in the diagram?
How many values bj are there, and to which parts of the diagram do they correspond?
What loss function are we using here?
Why does the first layer have two nested loops, but the second only one?
The computation of the sigmoid activation happens only in one loop. If the network looked different, would that happen in two nested loops, like the computation of the first layer?
To build a regression model, all we need is one output node without an activation. This means that our network as a whole, describes a function from the feature space to the real number line.
We can think of the first layer of our network as computing a feature expansion: the same thing we did in the fourth lecture to enable our linear regression to learn non-linear patterns, but this time, we don’t have to come up with the feature expansion ourselves, we simply learn it. The second layer is then just a linear regression in this expanded feature space.
The number of hidden nodes is a hyperparameter. More nodes makes the network more powerful (that is, able to represent more different functions), but also more likely to overfit, more expensive to compute and potentially more difficult to train. The only real advice we can give is that whenever possible, your hidden layer should be wider than the input layer.
After we've computed the output, we can apply any regression loss function we like, such as least-squares loss.
To build a binary classifier, we could do what the perceptron did: use the sign of the output as the class. This would be a bit like using our least squares classifier from the second lecture, except with a feature expansion layer below it.
These days, however, it’s much more common to take inspiration from the logistic regression. We apply the logistic sigmoid to the output and interpret the resulting value as the probability that the given input (x) is of the positive class.
The logarithmic loss that we use for logistic regression, can then be applied here as well.
For multiclass classification, we can use something called a softmax activation. We create a single output node for each class, and then ensure that they are all positive and that together they sum to one. This allows us to interpret them as class probabilities.
The softmax function is one way to ensure this property. It simply passes each output node through the exponential function, to ensure that they are all positive, and then divides each by the sum total, to ensure that all outputs together sum to one.
After the softmax we can interpret the value of node y3 as the probability that x has class 3. Given these probabilities, we can apply a simple log loss: the aim is to maximize the logarithm of the probability of the true class.
Because neural networks can be expensive to compute we tend to use stochastic gradient descent to train them.
Stochastic gradient descent is very similar to the gradient descent we’ve seen already, but we define the loss function over a single example instead of summing over the whole dataset: just use the same loss function, but pretend your data set consists of only one instance. We then loop over all instances, and perform a small gradient descent step for each one based on only the loss for that instance.
Stochastic gradient descent has many advantages, including:
Using a new instance each time adds some noise to the process, since the gradient will be slightly different for each instance, which can help to escape local minima.
Gradient descent works fine if the gradient is not perfect, but still good on average (over many instances). This means that taking many small inaccurate steps is often much better than taking one very accurate big step.
Computing the loss over the whole dataset is expensive. By computing the loss over one instance at a time, we get N steps of stochastic gradient descent for the price of one step of regular gradient descent.
Apart from this exception, the training of a neural network proceeds in much the same way as the training of linear classifiers we've seen already.
Before we dig into the details, we can get a sense of what neural network training looks like in the tensorflow playground. We suggest you play around a bit with the different datasets, different activations, and try to change the shape of the network.
Note how the shape of the decision boundary changes based on the activation functions we choose (curvy for sigmoid, piecewise linear for ReLU)
Note that adding another layer makes the network much more difficult to train (especially with sigmoid activations).
Try the linear activation (i.e. no activations on the hidden nodes). Note that all you get is a linear decision boundary, not matter how many layers you try.
Try a network on the circular dataset, with hidden layers with 2 units. It should not be possible so solve the circular dataset this way. It can be shown that to create a closed shape like a circle as a decision boundary, at least one hidden layer needs to be strictly bigger than your input layer.
That’s the basic idea of neural networks. So far, it’s hopefully a pretty simple idea. The complexity of neural networks lies in computing the gradients. For such complex models, sitting down at the kitchen table with pen and paper, and working out a symbolic expression for the gradient is no longer feasible. If we manage it at all, we get horrible convoluted expressions that no longer reduce to nice, simple functions, as they did in the case of linear regression and logistic regression.
To help us out, we need the backpropagation algorithm, which we’ll discuss in the next video.
In the last video, we saw what the structure of a very basic neural network was, and we ended on this question. How do we work out the gradient?
For neural networks, the gradients quickly get too complex to work out by hand, so we need to automate this process.
There are three basic flavors of working out derivatives and gradients automatically.
The first is to do it symbolically, What we do on pen and paper, when we work out a derivative, is a pretty mechanical process. It’s not too difficult to program this process out and let the computer do it for us. This, is what happens, when you ask Wolfram alpha to work out a derivative, for instance. It has its uses, cartainly, but it won;t work for us. The symbolic expression of the gradient of a function grows exponentiall with the complexity of the original function. That means that as we build bigger and bigger networks the expression of the gradient would soon grow too big to store in memory, let alone to compute.
An alternative approach is to forget the symbolic form of the function, and just estimate the gradient for a specific input x. We could, for instance, pick some points close to x and and fit a hyperplane through the outputs. This would be a pretty good approximation of the tangent hyperplane, so we could just read out the gradient. The problem is that this is a pretty unstable business. It’s quite difficult to be sure that the answer is accurate. It’s also expensive: the more dimensions in your model space, the more points you need to get an accurate estimate of your gradient, and each point requires you to recompute your model for a new input.
Backpropagation is a middle ground: it does part of the work symbolically, and part of the work numerically. We get a very accurate computation of the gradient, and the cost of computation is usually only twice as expensive as computing the output for one input.
Here are the three steps required to implement backpropagation for a given function.
We’ll focus in the first three steps in this part. In the next part, we’ll show how to build on this for complex computation graphs.
To show that backpropagation is a generic algorithm for working out gradients, not just a method for neural networks, we’ll first show how it works for some arbitrary scalar function: f(x) = 2/sin(e-x).
First we take our function f, and we break it up into a chain of smaller functions, the output of each feeding into the next. Defining the functions a, b, c, and d as shown, we can write f(x) = d(c(b(a(x)))).
The graph on the right is a called a computation graph: each node represents a small computer program that receives an input, computes an output and passes it on to another module.
Because we’ve described our function as a composition of modules, we can work out the derivative purely by repeatedly applying the chain rule.
We’ll call the derivative of the whole function with respect to input x the global derivative, and the derivative of each module with respect to its input we will call a local derivative.
The next step is to work out the local derivatives symbolically, using the rules we know.
The difference from what we normally do is that we stop when we have the derivatives of the output of a module in terms of the input. For instance, the derivative ∂c/ ∂b is cos b. Normally, we would fill in the definition of b and see if we could simplify any further. Here we stop once we know the derivative in terms of b.
Then, once all the local derivatives are known, in symbolic form, we switch to numeric computation. We will take a specific input, in this case -4.499 and compute the gradient only for that.
First we compute the output of the function f given this input. We do this simply by following the computation graph: the input is fed to the first module, and its output is fed to the second module, and so on. This is known as the forward pass. During our computation, we also retain our intermediate values a, b, c and d. These will be useful later on.
Next up is the backward pass. We take the chain-rule derived form of the derivative, and we fill in the intermediate values a, b, c and d.
This gives us a function with no variables, so we can compute the output. The result is that the derivative of this function, for the specific input -4.499, is 0.
Note that we have stopped doing symbolic computations: we fill in the numeric values and work out the numeric result (accepting a small amount of inaccuracy due to floating point imprecisions).
Here’s what the local gradients look like for the weight v2.
The line on the bottom shows how we update v2 when we apply a single step of stochastic gradient descent for x (x may not appear in the gradient, but the values y and h2 were computed using x).
So far, this is no different from gradient descent on a linear model. The real power of the backpropagation algorithm shows when we look at how the error propagates back down the network (hence the name) and is used to update the weights. Lets look at the derivative for weight w12
This approach by itself gives us a way to work out all the derivatives we need. But note that we are recomputing the same quantity multiple times. For instance, the error term 2(y-t) appears in every update rule we compute.
This is no coincidence. Because of the graph structure of our computation, the same local derivatives will show up in the expressions for many of our global derivatives. We can make clever use of this to compute all gradients efficiently. We will add this ingredient in the next part of the lecture.
This is how we described backpropagation in the last part. There, we focused on making a tradeoff between numeric and symbolic computation, and working out local derivatives.
However, there is another ingredient to backpropagation, which will show us where the name comes from. If we carefully accumulate our computed gradients we will see that we can compute all derivatives we need in a single walk down the graph.
The first thing we have to do is draw a proper computation graph. The diagram we’ve drawn so far provides a kind of “model perspective”: it separates the inputs and intermediate values, which are on the nodes, from the parameters, which are on the edges.
In a proper computation graph, all the values that go into our computation and come out of it, are nodes, whether they’re parameters of a model or inputs. We’ll draw these as circles. To represent the computations, we’ll introduce a new type of node, drawn as a diamond: ◆. The edges tell us which values are the input of a particular computation, and which is the output. All edges are directed, the ones going in to the computation represent inputs, and the ones coming out represent outputs.
We’ve drawn only part of the computation graph for this network here, to keep things simple. (The full computation graph for this network would have 22 nodes.)
Note also that:
We’ve included the computation of the loss. This is because when we compute gradients, we’re always interested in the derivative of the loss with respect to the parameters. Therefore, the computation of the loss should be part of the computation graph.
We’ve separated the computation of the unactivated hidden nodes (k) and the activated ones (h). We could make this one computation, but it’s more common to separate them.
Here are the computations represented by the diamond nodes.
For a complex computation graph, it’s important to work the derivatives out in the right order. This allows us to reuse what we’ve already computed at every step.
The algorithm is simple. We start at the top and work our way down.
We start at the topmost computation node. We focus on the computation of the loss from the prediction y and the target t. We’ll compute derivatives for every node in our computation graph.
These derivatives are not directly useful to us yet, because neither y nor t are values we can change directly: t, the target, is given by the data so we can’t change that at all, and y we can only change indirectly by changing our parameters.
What we can do however, is imagine that we could change y directly. In that case this derivative tells us how we would update y. In other words, this derivative tell us how we would like to change y, even though we can’t.
Next, we move to the previous computation, the one that takes h1, v1 and c as input, and produces y. We can compute a derivative for each input,]] but let’s focus on h1.
Applying the chain rule tells us that we can break up the derivative of the loss wrt to h2 into the derivative of the loss with respect to y times the derivative of y with respect to h1.
This shows us a general rule about backpropagation on computation graphs. If we have a node feeding into a computation, the global derivative of that node (the loss over the value of the node) is always the global derivative of the output of the computation, times the local derivative of the output over the input.
The key to backpropagation is that if we traverse the graph in the right order, the first derivative (the loss over the output) is always something we have already computed. If we take care that work out the derivatives in the reverse order in which we computed them, we will only ever need to work out the local derivative of the current computation.
With this notion in hand, we can work our way down the graph. For every input of every computation, we can work out the derivative in terms of the derivative for the output. We don’t need to worry about what happens after the output: the derivative for the output is all we need.
Once we have the local derivative worked out, we fill in the values from the forward pass, and multiply them by the value we already have for the derivative for the output.
Once we are done with a computation, we just move down the computation graph to the next one. We don’t care whether nodes represent parameters of the model like v1 (which we can change directly) or intermediate values like h1 (which we can only change indirectly). We want derivatives for all nodes in the graph, because we’ll need them to work out derivatives for any node below.
In this case, we deal with the node that computes the activation function. Since we already have the derivative of the loss with respect to h1, we only need to apply the chain rule once. This breaks up the computation of the derivative that we need (l over k1) into one derivative we’ve already computed (l over h1) and one local derivative that we can easily work out (h1 over k1).
Here is the final step. We’ve left out the biases: it’s a good exercise to see if you can work out what the rule is for the derivative of the biases.
This then, is the full backpropagation algorithm. If we move down the graph from the loss node, all we need to do is compute the loss wrt the input and multiply it by the local derivative (the output over the input).
Note that a lot of this is done by hand, rather than in the program. We never actually store a computation graph in the computer, we just draw it with pen and paper and use it to work out all the rules for computing derivatives efficiently. Once we’ve done this, we can write these down in a computer program.
For example, here is how backpropagation looks in pseudocode for our neural network (the diagram only shows part of the computation graph, but the algorithm is for the whole thing). In the algorithm dq is always the derivative of the loss with respect to the value q.
We start at the top, with dy. Then, we move down to the inputs of the computation that resulted in y. For each we compute their derivative by multiplying the derivative for the loss wrt the output by the local derivative of the computation.
Once we’ve made our way down to the bottom of the graph, we’ve computed the derivatives for every node in the graph.
This is how backpropagation was done in the early days of neural networks (up to the turn of the century). Once we began to recognize that neural networks could actually work, we needed ways to speed up their computation. The most effective way to achieve this is to describe the whole computation in terms of matrix multiplication/addition, together with the occasional element-wise non-linear operation. This allows us to write down the operation of a neural network very elegantly, and to use highly optimized routines for matrix multiplication (possibly on special hardware like a GPU).
In order to make proper use of this, we should also work out how to do the backpropagation part in terms of matrix multiplications. That’s where we’ll pick up next week in the first deep learning lecture.
NB: This picture requires us to rename the weights in the first layer.
In lecture 5, we introduced the logistic regression model, with the logarithmic loss. We saw that it performed very well, but it had one problem: when the data are very well separable, it didn’t have any basis to choose between two models like this: both separate the training data very well. Yet, they’re very different models.
There are some tricks we can add to the logistic regression to deal with this problem, but today we'll look at a loss function that takes this problem as its starting point: the maximum margin hyperplane classifier.
Here is an extreme example of the problem. We have two linearly separable classes and a decision boundary that separates the data perfectly. And yet, if I see a new instance that is very similar to the rightmost red diamond, but with a slightly higher x1 value, it is suddenly classified as a blue disc.
This illustrates the intuition behind the loss function we will introduce in this video. If we see new points near our existing points, they should be classified the same as the existing points. One way to accomplish this is to look at the distance from the decision boundary to the nearest red diamond and blue disc, and to maximize that.
What we are looking for is the hyperplane that separates the classes and has a maximal distance to the nearest positive point and nearest negative point.
We measure the distance m at a right angle to the decision boundary. For the positive class, there is only one point nearest the margin, but for the negative class, there are two the same distance away.
The points closest to the decision boundary are called the support vectors. This name comes from the fact that the support vectors alone, are enough to describe the model. If I give you the support vectors, you can work out the hyperplane without seeing the rest of the data.
The distance to the support vectors is called the margin. We’ll assume that the decision boundary is chosen so that the margin is the same on both sides.
This idea goes by many names. These all mean the same thing, but they are used in different contexts.
So, given a dataset, how do we work out which hyperplane maximizes the margin?
This is a tricky problem, because the support vectors aren’t fixed. If we move the hyperplane around to maximize the distance to one set of support vectors, we may move too close to other points, making them the support vectors.
Surprisingly, there is a way to phrase the maximum margin hyperplane objective as a relatively simple optimization problem.
To work this out, let’s first review how we use a hyperplane to define a linear decision boundary. Here is the 1D case. We have a single feature and we first define a linear function from the feature space to a scalar y.
If the function is positive we assign the positive class, if it is negative, we assign the negative class. Where this function is equal to 0, where it “intersects” the feature space, is the decision boundary (which in this case is just a single point).
Note that by defining the decision boundary this way, we have given ourselves an extra degree of freedom: the same decision boundary can be defined by infinitely many hyperplanes. We’ll use this extra degree to help us define a single hyperplane to optimize.
Here’s the picture for a two dimensional feature space. The decision boundary is the dotted line where the hyperplane intersects the (x1, x2) plane. If we rotate the hyperplane about that dotted line, we get a different hyperplane defining the same decision boundary.
The hyperplane h we will choose is the one that produces y=1 for the positive support vectors and y=-1 for the negative support vectors. Or rather, we will define the support vectors as those points for which the line produces 1 and -1.
For all other negative points, h should produce values below -1 and for all other positive points, h should produce values above 1.
This is the picture we want to end up with in 2 dimensions. The linear function evaluates to -1 for the negative support vectors, and to a lower value for all other negative points. It evaluates to 1 for the positive support vectors and to a higher value for all other positive points.
The trick we use to achieve this is to optimize with a constraint. We first define the margin as the distance from the decision boundary, where h evaluates to zero, to the line where h evaluates to 1, and on the other side to the line where h evaluates to -1. Then we set the constraint that all points should be on the correct side of their respective margins.
Here is our objective, written as precisely as we can manage at the moment. We will make this more precise as we move on.
The quantity that we want to maximize is "2 times the margin": the width of the band separating the negative from the positive support vectors (between the two dotted lines in the previous slide).
The constraints define the support vectors: all positive points should evaluate to 1 or higher. All negative points should evaluate to -1 or lower. Note that if we have N instances in our data, this gives us a problem with N constraints.
Note that this automatically ensures that the support vectors end up at -1 and 1. Why?
Here is a picture of a case where all negative points are strictly less than -1, and all positive points are strictly larger than 1. The constraints are satisfied, but there are no points on the edges of the margin: we have no support vectors.
In this case, we can easily make the margin bigger, pushing it out to coincide with the nearest points. Therefore, we have not hit the maximum yet. This is not an optimal solution to our optimization problem.
Thus, any hyperplane with a maximal margin, that satisfies the constraints. must have points on the edges of its margin. These points are the support vectors.
Here is the picture in 3D. Just like the hyperplane crosses the plane where y=0 to make the decision boundary, it crosses the y=1 plane to make the positive margin, and it crosses the y=-1 plane to make the negative margin.
Imagine finding a hyperplane that separates the classes, and then angling it so that he margins hit the nearest points.
Here is the picture for a single feature. We want to maximize the distance between the point where the hyperplane hits -1 and where it hits 1, while keeping the negatives below -1 and the positives above 1.
So, how do we work this into a practical optimization objective that we can actually solve?
The first thing we’ll do, is to simplify the two constraints for the two classes into a single constraint.
We introduce a label yi for each point xi which is -1 for negative points and +1 for positive points. Multiplying the left-hand side of the constraint by yi keeps it the same for positive points and takes the negative for negative points. This means that in both case, the left hand side should now be larger than or equal to one.
We now have a problem with the same constraint for every instance in the data.
Next, we need to make the phrase "2x the size of the margin" more precise. We know that our hyperplane, whichever hyperplane we choose, is defined by parameters w and b. Looking at the parameters of a particular hyperplane (good or bad), can we tell what the size of the margin is?
First, let's recall what the parameters mean geometrically. Remember that in the equation wTx + b, w is the vector pointing orthogonally to the decision boundary. b is how high the hyperplane is at the origin.
This is the value we’re interested in expressing. Twice the margin.
To make the math easier, let’s move the axes around so that the lower dotted line (belonging to the negative support vectors) crosses the origin. Doing this doesn’t change the size of the margin.
We can now imagine a vector from the origin to the upper dotted line, at a right angle. Call this vector a. The length of a is exactly the quantity we’re interested in.
Remember also that the vector w points in the same direction as a, because both are perpendicular to the decision boundary.
Because of the way we’ve moved the hyperplane, we know that the origin (0) hits the negative margin, so evaluates to -1. We also know that a hits the positive margin, so evaluates to +1.
Subtracting the first from the second, we find that the dot product of a and w must be equal to two.
Since a and w point in the same direction (cos α = 1), their dot product is just the product of their magnitudes (see the geometric definition of the dot product on the right).
Re-arranging, we find that the length of a is 2 over that of w.
So, the thing we actually want to maximise is 2/||w||. This gives us a precise optimization objective.
Note that almost all the complexity of the loss is in the constraints. Without them we could just let all elements of w go to zero However, the constraints require the output of our model to be larger than 1 for all positive points and smaller than -1 for all negative points. This will automatically push the margin up to the support vectors, but no further.
Since we prefer to minimize instead of maximize, we take the inverse of this objective, and minimize that. The resulting classifier is called a “hard margin” support vector machine (SVM), since no points are allowed to violate the constraint and end up inside the margin.
The hard margin SVM is nice, but it doesn’t work well when:
We have data that is not linearly separable
We could have a very nice decision boundary if we just ignored a few misclassified points. For instance, when there is a little noise, or a few outliers.
A common alternative is to replace the norm of w by the dot product of w with itself. This is just a question of removing the square from the norm, so it doesn't change the location of the minimum.
This form is easier to work with if we want to work out the gradient explicitly.
To deal with such situations, we can allow a soft margin. In a soft margin, we allow a few points to be on the wrong side of the margin, if it helps us achieve a better fit on the rest of the points. That is, we can trade off a few violations of the constraints against a bigger margin.
To achieve this, we introduce a slack parameter pi for each point xi. This parameter indicates the extent to the constraint on xi is relaxed. Our learning algorithm can set pi to whatever it likes. If it sets pi to zero, the constraint is the same as it was for the hard margin classifier. If it sets pi higher than zero, the constraint is relaxed and the point xi can fall inside the margin.
The price we pay is that pi is added to our minimization objective, so the value we reach there becomes higher if we use more nonzero slack parameters.
Our search algorithm, which we will detail later, does the rest. It automatically makes the tradeoff between how much we want to violate the original constraints and how big we want the margin to be.
C is a hyperparameter, indicating how to balance the tradeoff.
Here is what that looks like in 1D. The open points are the support vectors, and for each class, we have one point on the wrong side of the decision boundary, requiring us to pay the residual pi as a penalty.
So, the objective function has a penalty added to it, but without this penalty, we would not have been able to satisfy the objective at all, since the two classes are not separable
However, even if the classes are linearly separable, it can be good to allow a little slack.
Here, the two points that would be the support vectors of the hard margin objective leave a very narrow margin. By allowing a little slack, we can get a much wider margin that provides a decision boundary that may be more likely to generalise to unseen data.
So, now that we have made our objective precise, how do we find a good solution? We haven’t discussed constrained optimization much yet. It turns out, we don't necessarily need to use constrained optimization methods, although there is a benefit to using them. We'll look at both options.
The first oiption allows us to use the old familiar gradient descent, without having to worry about constraints.
The other requires us to delve into constrained optimization, which we start to do in the next video. The payoff for that is that it opens the door to the kernel trick.
In the rest of this video, we will work out option one.
If you're in a hurry, and you just want to know the parts that are important for the course, you can skim the rest of this video and focus on the next two.
To get rid of the constraints, let’s look at what we know about the value of pi.
If the constraint for xi is violated, we can see that pi makes up the difference between what yi(wTxi+ b) should be (1) and what it is.
If the constraint is not violated, pi becomes zero, and the value we computed above becomes negative.
We can summarise these two conclusions in a single definition for pi:it is is 1 - yi(wTxi+ b) if the constraint is violated and 0 otherwise. This is equal to the value max(0, 1- yi(wTxi+ b)) in both cases.
Since this value is always equal to pi, we can replace pi by it everywhere it occurs in the optimization objective
Doing this, we get a new objective function.
The new constraints are now always true. For the second one, this is easy to see, since the maximum of 0 and something is always larger than or equal to 0.
For the first, note that we worked out max(0, 1- yi(wTxi+ b)) as how far below 1 the value yi(wTxi+ b) was. If we move it to the the other side, we get
yi(wTxi+ b) + max(0, 1- yi(wTxi+ b))
which must therefore be exactly equal to 1 if yi(wTxi+ b) is below 1, or larger if yi(wTxi+ b) is larger than 1.
Since the constraints are always true, we can remove them.
This gives us an unconstrained loss function we can directly apply to any model. For instance when training a neural network to classify, this makes a solid alternative to logarithmic loss. This is sometimes called the L1-SVM (loss).
We can think of the first term as a regularizer. It doesn’t enforce anything about how well the plane should fit the data. It just ensures that the parameters of the plane don’t grow too big. We'll see more regularization in the next lecture, but this form, where we add the norm of the parameter vector to the loss function, is very common.
The highlighted part of the second term functions as a kind of error (just as we used in least squares classification, but without the square). It computes how far the model output yi(wTxi+ b) is away from the desired value (1).
However, unlike the least squares classifier, we only compute this error for points that are sufficiently close to the decision boundary. For any points far from the boundary (i.e. outside the margin), we do not compute any error at all. This is achieved by cutting off any negative values. If the data is linearly separable, we could easily shrink the margin enough to make the error zero for all points, but this usually requires a w with a very high norm, so then the regulariser kicks in and start increasing so much that we prefer some points inside the margin.
And with that, we have discussed our final classification loss. Let’s review.
Here are all our loss functions in one handy slide.
The error, also known as zero one loss, is imply the number or proportion of misclasssified examples. It’s usually what we’re interested in, but it doesn’t give us a loss surface that is suitable for searching.
The least-squares loss we introduced as a simple illustration of the principle of a proxy loss for the error. In practice it doesn't usually work very well, and is rarely used.
The log loss requires a sigmoid function to be added to the output of the linear function. It assumes that he result is the probability of the positive class applying to the instance, and it maximizes the log likelihood of the classes given the model parameters. Practically this boils down to minimizing the negative log likelihood of the correct class. This can also be derived from the cross-entropy between the true class distribution given by the data and the class distribution given by the model.
Finally, the soft margin SVM loss, which we've introduced today attempts to maximize the margin between the positive and negative points. It's also know as a maximum margin loss, or the hinge loss (since the error is fed through a maximum function, which looks like a hinge).
In this final part of the lecture, we will take a quick look at support vector machines that make use of the kernel trick. It’s not exam material, so you can skip it if you need to, but we recommend at least giving a skim, so that you have a broad idea what SVMs are in case you ever encounter them in the wild.
We’re skipping a large amount of technical details in this part. If you really want to know how this works all the way down to the foundations, there is an extra lecture explaining them on the website.
In the previous video we introduced the maximum margin loss objective. This was a constrained optimization problem which we hadn't learned how to solve yet. We sidestepped that issue by rewriting it into an unconstrained optimization problem, so that we could solve it with plain gradient descent.
In this video, we will learn a relatively simple trick for attacking constrained optimization problems: the method of Lagrange multipliers. In the next video, we will see what happens if we apply this method to the SVM objective function.
To avoid overloading this lecture, we will skip a lot of the technical details. We will give you a very high level view of what support vector machine can do. This should help you recognize what they are, and give you a sense of how they work, in case you ever need to apply them.
If you ever need to understand them properly, all the technical details are available on the website in an extra lecture.
The key idea behind all this technical stuff is that we can rewrite our maximum margin objective from the previous slide into its dual form. This is what the KKT method does for us, it gives us a new minimization objective where some of the variables have disappeared. Under the right conditions, both objectives have the same solution.
In return we also get some extra variables αi. You can think of these as weights, we get one for every instance xi, yi in our data. The hyperplane parameters have disappeared and these αs are the only parameters of our problem now.
There isn’t much more intuition we can give you. Without a whole lot of math, you’ll just have to take our word for it that these two problems are equivalent. We can find the optimal maxim-margin hyperplane loss using the problem at the top or the problem at the bottom.
The reason this dual problem is so interesting is that the only thing we ever need to compute on our data is the dot product between every pair of instances in our data. That is, we don’t need the original features: if I give you all dot products between all pairs of instances in a dataset, you can fit an SVM to it without every seeing anything else of the data.
This is the idea that leads to the kernel trick.
What if I didn’t give you the actual dot products, but instead gave you a different matrix of values, that behaved like a matrix of dot products.
The idea is that it’s possible to design a high-dimensional feature space in such a way that that you can very cheaply compute dot products without ever having to compute the high dimensions vectors.
Remember, by adding features that are derived from the original features, we can make linear models more powerful. If the number of features we add grows very quickly (like if we add all 5-way cross products), this can becomes a little expensive (both memory and time wise).
The kernel trick is basically a souped-up version of this idea. We expand our features into a high dimensional space, except we never actually compute the feature expansion. We just compute the dot products in the expanded feature space directly.
Here’s a plot for the dataset from the first lecture. As you can tell, the RBF kernel massively overfits for these hyperparameters, but it does give us a very nonlinear fit.
Let’s look at an example. The simplest way we saw to extend the feature space was to add all cross-products. This turns a 2D dataset into a 5D dataset. It also more than doubles the amount of data we need to store our dataset, and the amount of time required to, for instance, compute a dot product in this space.
Again, to fit an SVM, all we need is the dot products between pairs of instances in this 5D space. Let’s see if we can compute those, or something similar, without explicitly computing the 5D vectors.
Here are two 2D feature vectors. What if, instead of computing their dot product, we computed the square of their dot product.
It turns out that this is equal to the dot product of two other 3D vectors a’ and b’.
The square of the dot product in the 2D feature space, is equivalent to the regular dot product in a 3D feature space. The new features in this 3D space can all be derived from the original features. They're the three cross products, with a small multiplier on the a1a2 cross product.
That is, this kernel function k doesn't compute the dot product between two instances, but it does compute the dot product in a feature space of expanded features. We could do this already, but before we had to actually compute the new features. Now, all we have to do is compute the dot product in the original feature space and square it.
Since the dual solution to the SVM is expressed purely in terms of the dot product, we can replace the dot product this kernel function. We are now fitting a line in a higher-dimensional space, without computing any extra features explicitly.
Note that this only works because we rewrote the optimization objective to get rid of w and b. Since w and b have the same dimensionality as the features, keeping them in means using explicit features.
Saving the trouble of computing a few extra features may not sound like a big saving, but by choosing our kernel function cleverly we can push things a lot further.
For some expansions to a higher feature space, we can compute the dot product between two vectors, without explicitly expanding the features. This is called a kernel function.
There are many functions that compute the dot product of two vectors in a highly expanded feature space, but don’t actually require you to expand the features.
Taking just the square of the dot product, as we did in our example, we lose the original features. If we take the square of the dot product plus one, it turns out that we retain the original features, and get all cross products.
If we increase the exponent to d we get all d-way cross products. Here we can see the benefit of the kernel trick. Imagine setting d=10 for a dataset with a modest 10 features. Expanding all 10-way cross-products of all features would give each instance 10 trillion expanded features. We wouldn't even be able to fit one instance into memory.
However, if we use the kernel trick, all we need to do is to compute the dot product in the original feature space, add a 1, and raise it to the power of 10.
If ten trillion expanded features sounded like a lot, here is a kernel that corresponds to an infinite-dimensional expanded feature space. We can only approximate this kernel with a finite number of expanded features, getting closer as we add more. Nevertheless, the kernel function itself is very simple to compute.
Gamma is another hyperparameter.
Because this is such a powerful kernel, it is prone to overfitting.
Here’s a plot of the SVM decision boundary with a poly kernel and an RBF kernel, on some simple dataset.
As you can tell, the RBF kernel massively overfits for these hyperparameters, but it does give us a very nonlinear fit.
One of the most interesting application areas of kernel methods is places where you can turn a distance metric in your data space directly into a kernel, without first extracting any features at all.
For instance for an email classifier, you don't need to extract word frequencies, as we’ve done so far, you can just design a kernel that operates directly on strings (usually based on the edit distance).Put simply, the fewer operations we need to turn one email into another, the closer we put them together. If you make sure that such a function behaves like a dot product, you can stick it in the SVM optimizer as a kernel. You never need to deal with any features at all. Just the raw data, and their dot products in some feature space that you never compute.
If you’re classifying graphs, there are distance metrics like the Weisfeiler-Lehman algorithm that you can use to define kernels.
Kernel SVMs are complicated beasts to understand, but they're easy to use with the right libraries. Here's a simple recipe for fitting an SVM with an RBF kernel in sklearn.
Neural nets require a lot of passes over the data, so it takes a big dataset before kN becomes smaller than N2, but eventually, we got there. At that point, it became more efficient to train models by gradient descent, and the kernel trick lost its luster.
And when neural networks did come back, they caused a revolution. That’s where we’ll pick things up next lecture.
